Description

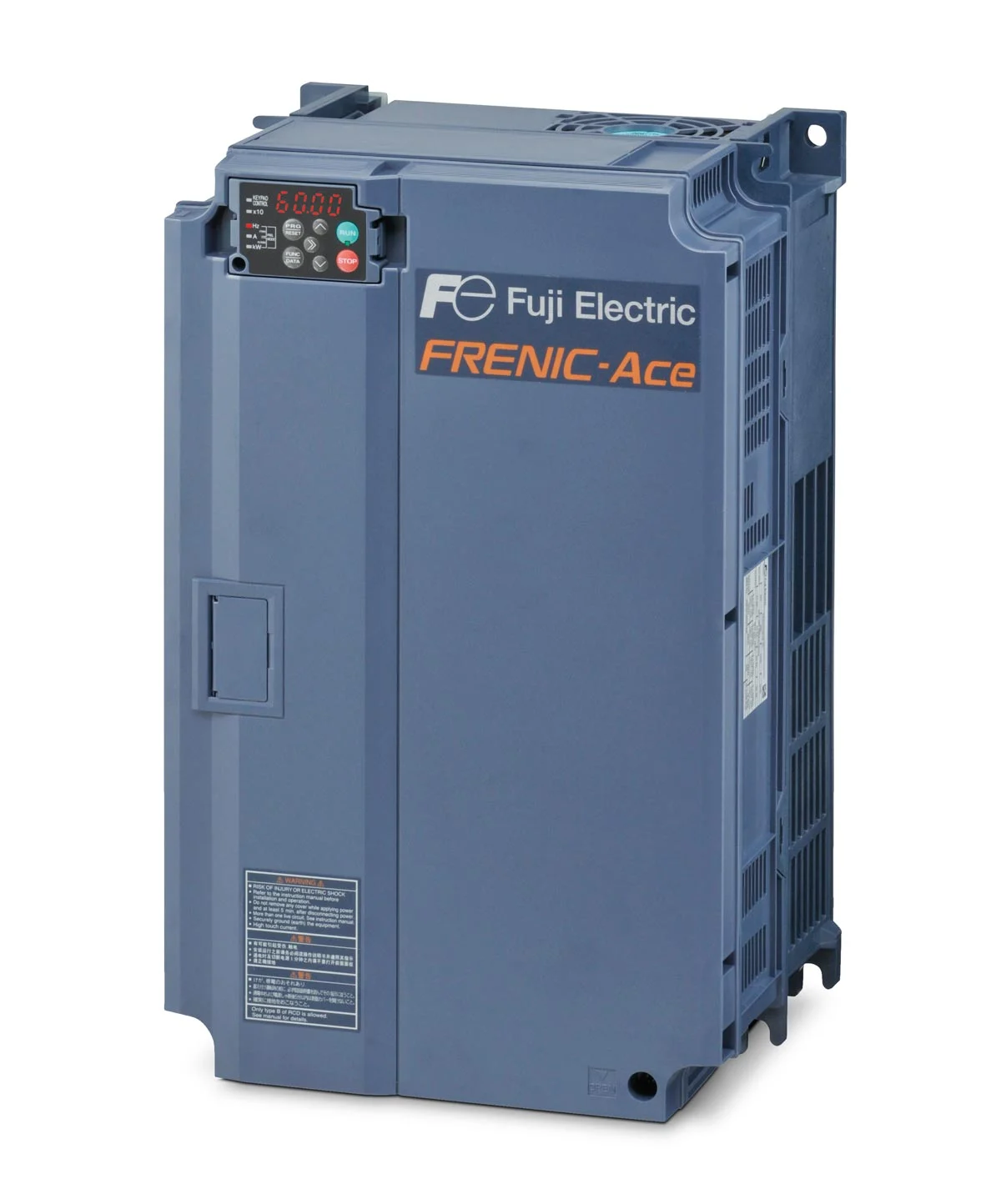

The standard inverter for the next generation, the FRENIC-Ace can be used in most types of applications – from fans and pumps to specialized machinery. The customizable and programmable logic functions up to a maximum of 200 steps, whether it is simple logic functions or full-scale programming. It supports both digital and analog operations. It can be used for dedicated purposes such as wire drawing machines, spinning machines and hoists with the appropriate programming templates. The FRENIC-Ace offers advanced integration capabilities including applied power ratings, sensorless dynamic torque vector control, PM synchronous motor control, 2-channel on-board RS485 communication port, and customer customizable logic.

Features & Benefits

• Customizable logic, Superior flexibility
• Quadruple rating
• CAN Open communications built-in as standard
• Capacity range up to 220 kW in HHD
• Wide variety of functions as a standard feature
• Functional safety: STO function as standard
• 10 years lifetime design
• Inbuilt LED keypad
• Multi-function LCD keypad (optional)
• Simple keypad with USB port (optional)

Documentation

Brochures

• FRENIC-Ace_24A1-E-0042g

Manuals

• FRENIC-Ace_Instruction Manual – INR-SI47-1733g-E
• FRENIC-Ace_User Manual – 24A7-E-0043g
• RS-485_User Manual
• TP-E1U Installation Manual

Loader Software

• FRENIC-Loader 4 Version 1.1.0.32

Option Cards

• OPC-AIO (Analog input interface card)
• OPC-CCL (CC-Link communications card)
• OPC-COP2 (CANopen communications card)
• OPC-DEV (DeviceNet communications card)
• OPC-DIO (Additional digital input/output card)
• OPC-E2-ADP1 (Option Attachment)
• OPC-E2-ADP2/3 (Option Attachment)
• OPC-E2-PG (PG interface card)
• OPC-E2-PG3 (PG (encoder) interface 12~15V HTL)
• OPC-E2-RS (RS-485 communication card)
• OPC-PDP3 (PROFIBUS-DP communication card)
