Description

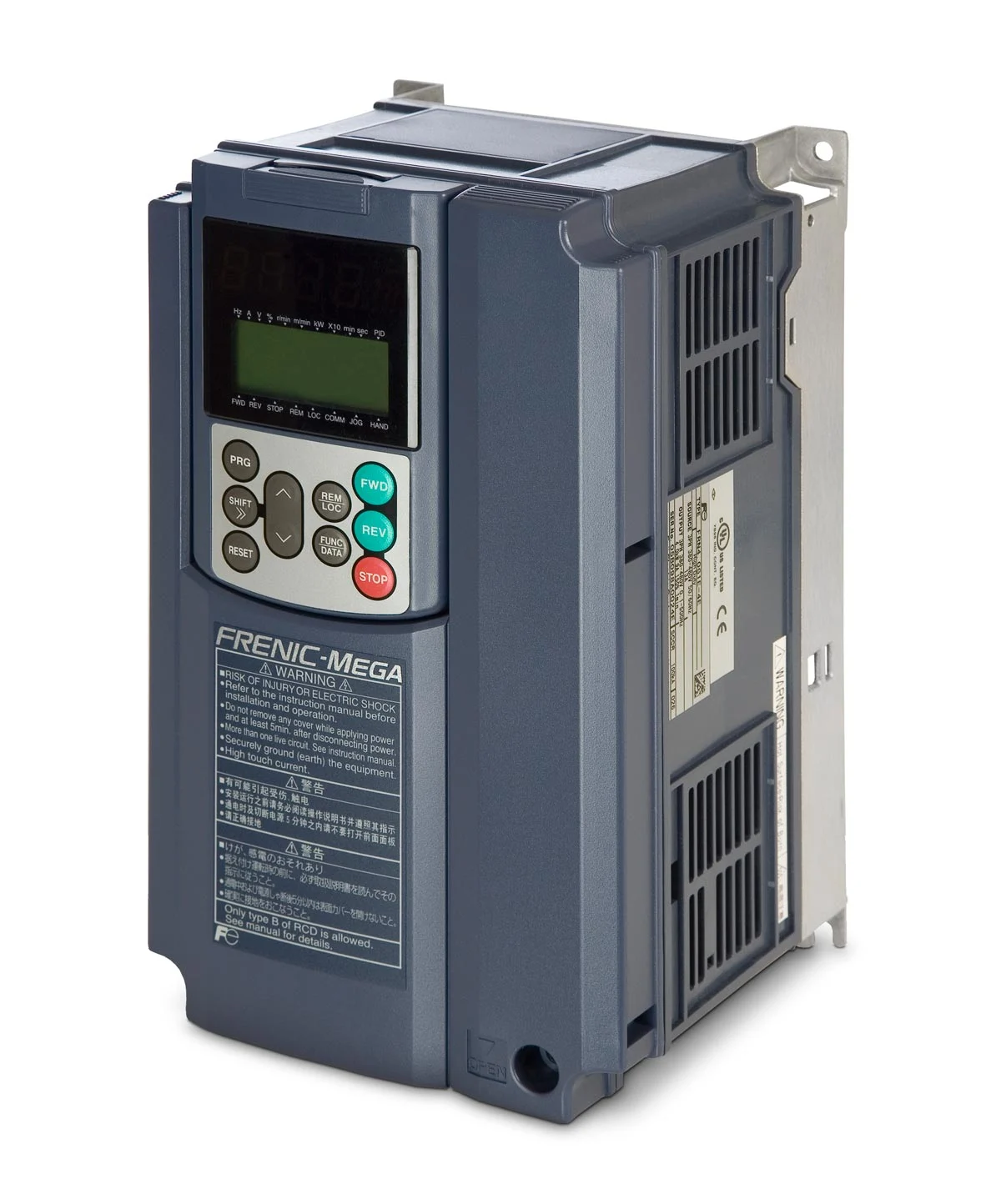

Fuji Electric has raised the bar for inverter performance with the FRENIC-MEGA variable drive. Offering expanded power ratings and flexible configurations that support 0.4KW to 710KW AC drive/variable frequency drive (VFD) / v/ Hz vector drive applications – these inverters are designed for long lifecycles and improved maintenance functions. With the flexibility and functionality to support a wide range of applications on all types of mechanical equipment, FRENIC-MEGA takes core capability, responsiveness, environmental awareness, and easy maintenance to the next level.

Features & Benefits

• Safety enable input (compliant to EN/ISO13849-1 PL=d, cat. 3)
• Sensorless vector control mode (100% torque at 0 Hz)
• Advanced PID functions (dancer control)
• Brake control function
• Logic gates for logic combination of input and output functions and delay timer (10 steps)
• Positioning function (when encoder option is used)
• 3 slots for 3 different options at the same time (encoder, fieldbus, I/O expansion)
• Removable control terminals (cage clamp type)
• External EMC filter (footprint up to 22 kW) for higher EMC compliance (EN 61800-3, category C2)
• Basic LED keypad with built-in USB port and copy function (1 complete function set, operation, maintenance and alarms information)
• Advanced LCD/LED keypad with clear text description and copy function (3 complete function sets)

Documentation

Manuals

• FRENIC_Communication manual – RS-485 User Manual
• FRENIC-MEGA_Instruction manual – E_Safety – INR-SI47-055
• FRENIC-MEGA_Instruction manual – IM_AE_1335a-E
• FRENIC-MEGA_User manual – 24A7_E_0054a
• TP-E1U Installation Manual

Brochures & Catalogs

• FRENIC-MEGA_MEH655a

Starting Guide

• Starting Guide_Mega_EN_1_3_0

Loader Software

• FRENIC-Loader 4 Version 1.1.0.32
• FRENIC-MEGA_Message Manager
• USB communication driver for FRENIC series Loader (Windows 8_1_10)
